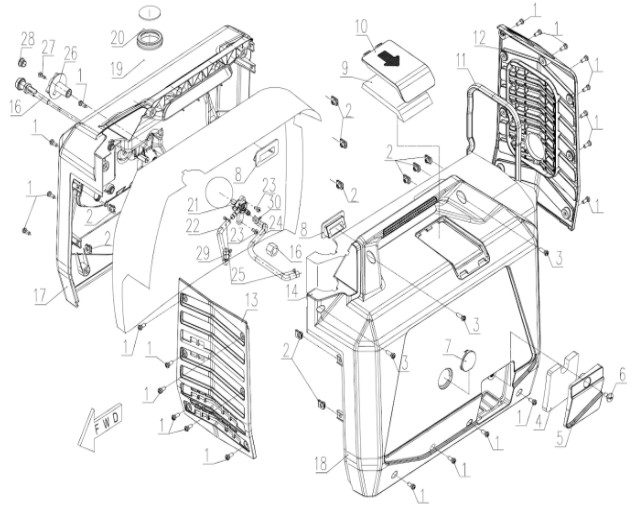

Внешний кожух в сборе LH25i
|
Наименование
|
Артикул
|
|
|---|---|---|
| 1. | SCREW M5X12 | GB/T9074.1-1988 M5x12 |
| 2. | CLIP NUT M5 | LH1000i-381004 |
| 3. | SCREW M5X15 | GB/T9074.1-1988 M5x15 |
| 4. | OIL FILLING COVER | LH25i-384002 |
| 5. | OIL FILLING COVER | LH25i-384001 |
| 6. | BOLT M6X13 | LH1000i-384002 |
| 7. | DRAINING FUEL COVER, CARBURETOR | LH25i-380001 |
| 8. | MOUNTING ABSORB CUSION 3, FUEL TANK | LH2000i-381002 |
| 9. | OIL FILLING COVER | LH25i-382003 |
| 10. | SPARK PLUG COVER | LH25i-382001 |
| 11. | SEAL RING | LH1000i-385003 |
| 12. | MUFFLER OUTER COVER | LH25i-386100 |
| 13. | AIR INTAKE COVER | LH25i-385100 |
| 14. | SOUND-ABSORBING SPONGE (LEFT) | LH25i-381001 |
| 15. | SOUND-ABSORBING SPONGE (RIGHT) | LH25i-383001 |
| 16. | CHOKE CABLE ASSY | LH2000i-383003 |
| 17. | RIGHT OUTER COVER | LH25i-383100 |
| 18. | LEFT OUTER COVER | LH25i-381100 |
| 19. | LIMIT HOSE, FUEL LEVEL SCREEN | LH25i-370003 |
| 20. | FUEL LEVEL SCREEN | LH25i-370002 |
| 21. | GASOLINE SWITH ASSY | LH1000i-373000 |
| 22. | OUTLET PIPE, FUEL TANK | LH25i-370005C |
| 23. | TAPPING SCREW ST4.2×13 | GB/T845-F-H ST4.2×13 |
| 24. | FUEL INTAKEPIPE,CARBURETOR | LH25i-370005D |
| 25. | CLIP Q671B8.5 | QC/T621-1999 Q671B8.5 |
| 26. | MAIN SWITCH KNOB | LH25i-370004A |
| 27. | CROSS RECESSEDPAN HEAD TAPPING SCREW AND PLAIN WASHER SET ST4.2×12 | GB9074.5-88 M4x12 |
| 28. | stop cover | LH2000i-LH1000i-370008 |
| 29. | CLIP Q671B10 | QC/T621-1999 Q671B10 |
| 30. | CLIP Q673B9 | QC/T621-1999 Q673B9 |
