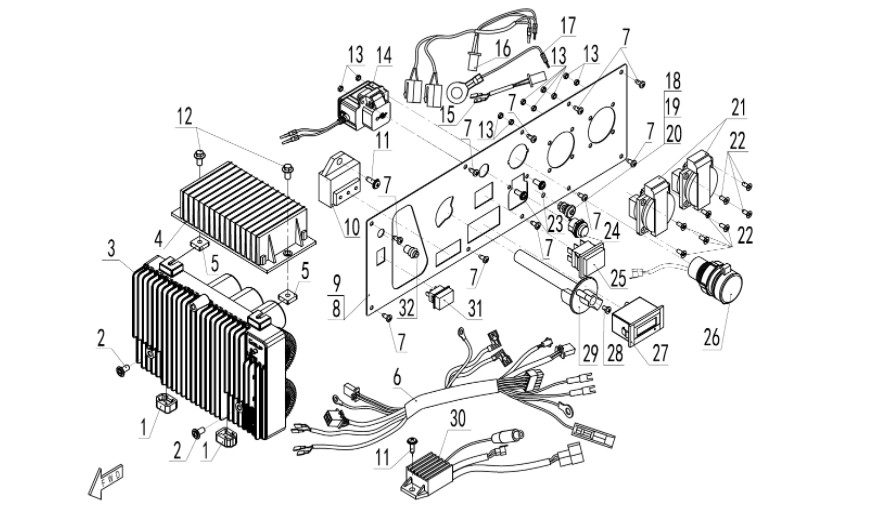

Система управления LH45ie
|
Наименование
|
Артикул
|
|
|---|---|---|
| 1. | RUBBER PAD, INVERTER MODULE | LH1000i-362001 |
| 2. | SCREW M6X12 | LH1000i-362002 |
| 3. | INVERTER MODULE 230V | LH45i-311600 |
| 4. | STARTING MODULE, 230V | LH45iE-311700 |
| 5. | SQUARE NUT M6 | LH45i-391001 |
| 6. | MAIN CABLE | LH45i-363100 |
| 7. | SCREW ST4.2X13 | GB/T845-F-H ST4.2X13 |
| 8. | CONTROL PANEL | LH45iE-301001 |
| 10. | TCI IGNITION | LH45i-311500 |
| 11. | SCREW ST5X15 | GB9074.19-88(F) ST5X15 |
| 12. | HEX FLANGE BOLT M6X12 | GB/T5789-2000 M6X12 |
| 13. | HEX NUT M4 | GB/T6170-2000 M4 |
| 14. | USB ASSY | LH2000i-367000 |
| 15. | KILL SWITCH CONNECTING LINE | LH45iE-363600 |
| 16. | AC OUTPUT WIRE 230V | LH45i-363200 |
| 17. | AC SOCKET GROUNDED LINE SET | LH45i-363500 |
| 18. | KNIRLED NUT M5 | LH1000i-360002 |
| 19. | HEX FLANGE NUT M5 | GB/T6177.1-2000 M5 |
| 20. | HEX FLANCE BOLT M5X16 | GB/T5789-2000 M5X16 |
| 21. | AC SOCKET | LH1000i-361700 |
| 22. | SCREW M4X12 | GB819-85 |
| 23. | SCREW M4X12 | GB9074.5-88 M4X12 |
| 24. | ENGINE STARTING BOTTON | LH45iE-361200 |
| 25. | ENGINE SWITCH | LH45i-361100 |
| 26. | CIG SOCKET | LH2000i-365000 |
| 27. | VFT | LH45i-362100 |
| 28. | SCREW M4X12 | GB818-2000 |
| 29. | MAIN SWITCH | LH45i-361001 |
| 30. | REGULATOR | LH45iE-311800 |
| 31. | ECO SWITCH | LH1000i-361300 |
| 32. | RESET BOTTON | LH1000i-361900 |
