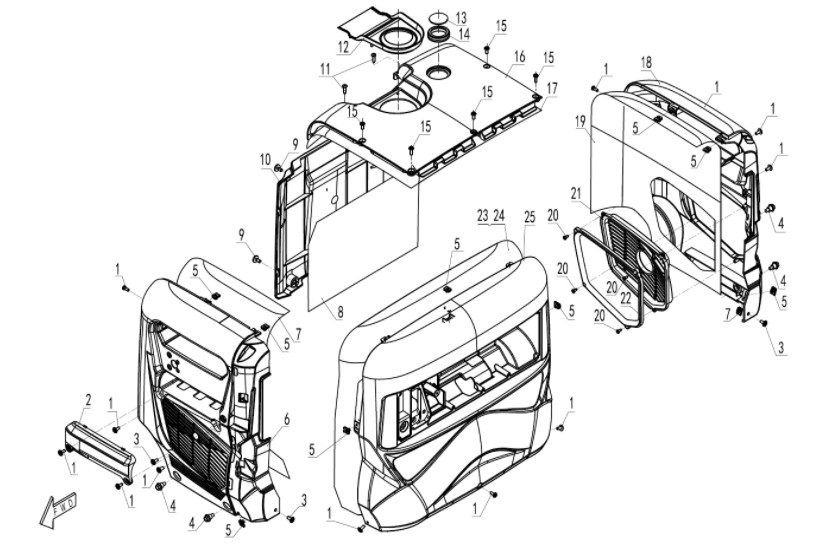

Внешний кожух в сборе LH45ie
|
Наименование
|
Артикул
|
|
|---|---|---|
| 1. | SCREW M5X12 | GB/T9074.1-1988 M5X12 |
| 2. | BATTERY COVER BLACK | LH45i-386003-BK |
| BATTERY COVER WHITE | LH45i-386003-WH | |
| 3. | SCREW M6X12 | LH1000i-362002 |
| 4. | STEP BOLTM6X16 | LH45i-382002 |
| 5. | CLIP NUT M5 | LH1000i-381004 |
| 6. | AIR INLET PLASTIC HOUSING BLACK | LH45i-382100-BK |
| AIR INLET PLASTIC HOUSING WHITE | LH45i-382100-WH | |
| 9. | BOLT M6X13 | LH1000i-384002 |
| 10. | REAR PLASTIC COVER BLACK | LH45i-386100-BK |
| REAR PLASTIC COVER WHITE | LH45i-386100-WH | |
| 11. | SCREW ST4.2X13 | GB/T845-F-H ST4.2X13 |
| 12. | RUBBER GASKET, FUEL FILLING PORT | LH45i-370001 |
| 13. | FUEL GAUGE WINDOW | LH25i-370002 |
| 14. | LOCATING BUSH, FUEL GAUGE WINDOW | LH25i-370003 |
| 15. | SCREW M5X15 | GB/T9074.1-1988 M5X15 |
| 16. | TOP PLASTIC HOUSING BLACK | LH45i-385001-BK |
| TOP PLASTIC HOUSING WHITE | LH45i-385001-WH | |
| 18. | EXHAUST PLASTIC HOUSING BLACK | LH45i-383100-BK |
| EXHAUST PLASTIC HOUSING WHITE | LH45i-383100-WH | |
| 20. | SCREW ST3.5X9.5 | GB/T845-C-H ST3.5X9.5 |
| 21. | EXHAUST COVER BLACK | LH45i-383002-BK |
| EXHAUST COVER WHITE | LH45i-383002-WH | |
| 22. | SEAL | LH1000i-385003 |
| 25. | LEFT PLASTIC HOUSING BLACK | LH45i-381100-BK |
| LEFT PLASTIC HOUSING WHITE | LH45i-381100-WH | |
