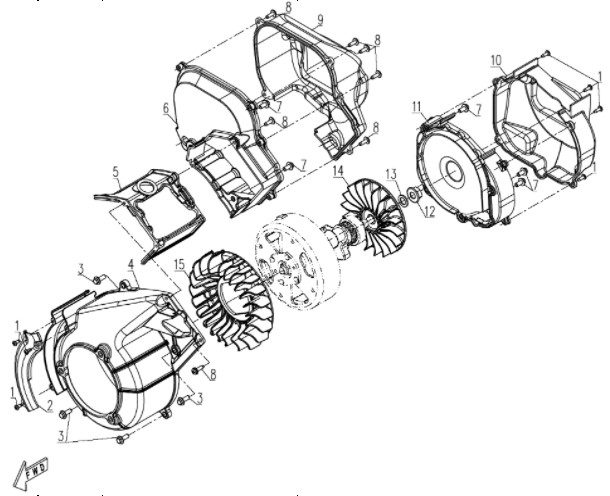

Система охлаждения LH25i
|
Наименование
|
Артикул
|
|
|---|---|---|
| 1. | SCREW AND WASHER ST4.2X12 | GB9074.18-88(F) ST4.2×12 |
| 2. | PRESSING LINE PLATE | LH2000i-350003 |
| 3. | FLANGE BOLT M6X16 | GB/T5789-1986 M6x16 |
| 4. | FRONT AIR INLET COVER SET | LH2000i-351000 |
| 5. | WIND SCOOPER | LH2000i-350002 |
| 6. | FRONT COVER, UPPER MUFFLER | LH2000i-352000 |
| 7. | FLANGE BOLT M6X12 | GB/T5789-1986 M6x12 |
| 8. | SCREW AND WASHER ST5X15 | GB9074.19-88(F) ST5x15 |
| 9. | REAR COVER, LOWER MUFFLER | LH2000i-353000 |
| 10. | REAR COVER, REAR FAN | LH2000i-355000 |
| 11. | MIDDLE COVER, REAR FAN | LH2000i-354000 |
| 12. | FLANGE NUT M10X1.25 | GB/T6177.2-2000 M10x1.25 |
| 13. | WASHER 10.5X20X2 | GB/T97.1-2002 10.5x20x2 |
| 14. | REAR FAN | LH1000i-350006 |
| 15. | FRONT FAN | LH2000i-350001 |
