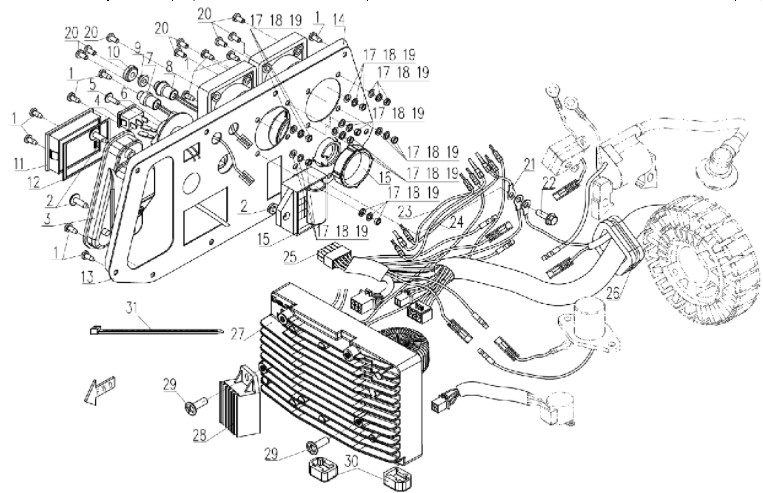

Система управления LH25i
|
Наименование
|
Артикул
|
|
|---|---|---|
| 0. | CONTROL PANEL ASSY (FUEL AND ELECTRICITY SWITCH SEPARATE) | LH20i-361000 |
| CONTROL PANEL ASSY (FUEL AND ELECTRICITY SWITCH COMBINED) | LH20i-361000A | |
| 1. | SCREW ST4.2X12 | GB/T845-F-H |
| 2. | SCREWAND WASHER ST5X15 | GB9074.19-88(F) |
| 3. | WIND LIMIT PLATE, RECOIL STARTER HANDLEBAR | LH25i-330400 |
| 4. | ECO SWITCH SET | LH1000i-361300 |
| 5. | SCREW AND WASHER M4X12 | GB9074.5-88 |
| 6. | FUEL SWITCH KNOB | LH25i-370004 |
| 7. | RESET BUTTON (GREEN) | LH25i-361100 |
| 8. | ENGINE STOP BUTTON (RED) | LH25i-361200 |
| 9. | FLANGE NUT M5 | GB/T6177.1-2000 |
| 10. | KNIRLED NUT M5 | LH1000i-360002 |
| 11. | VFT LCD | LH25i-361300 |
| 12. | SEALING GASKET, VFT LCD | LH25i-361002 |
| 13. | CONTROL PANEL, 230V, FOR CIG SOCKET | LH25i-361001 |
| 14. | CONTROL PANEL DECAL, 230V, FOR CIG SOCKET | LH25i-361003 |
| 15. | TCI SET | LH2500i-361600 |
| 16. | CIG SOCKET SET | LH2000i-365000 |
| 17. | WASHER 4X8X0.5 | GB/T848-2002 |
| 18. | SPRING WASHER 4 | GB/T93-1987 |
| 19. | HEX NUT M4 | GB/T6170-2000 |
| 20. | SCREW AND WASHER M4X12 | GB9074.5-88 |
| 21. | AC SOCKET GROUNDED LINE SET | LH1000i-361400 |
| 22. | FLANGE BOLT M5X16 | GB/T5789-1986 |
| 23. | AC SOCKET GROUNDED CONNECTING LINE | LH2000i-361200 |
| 24. | AC SOCKET CONNECTING LINE | LH2000i-361300 |
| 25. | CABLE ASSY | LH25i-363000 |
| 26. | CABLE PROTECTIVE HOSE | LH2000i-360001 |
| 27. | INVERTER MODULE, 230V | LH2500i-362100A |
| INVERTER MODULE, 240V | LH2500i-362100B | |
| INVERTER MODULE, 120V | LH2500i-362100C | |
| 28. | REGULATOR | LH2000i-366000 |
| 29. | BOLT M6X12 | LH1000i-362002 |
| 30. | SHOCK ABSORBING RUBBER BLOCK, INVERTER MODULE | LH1000i-362001 |
