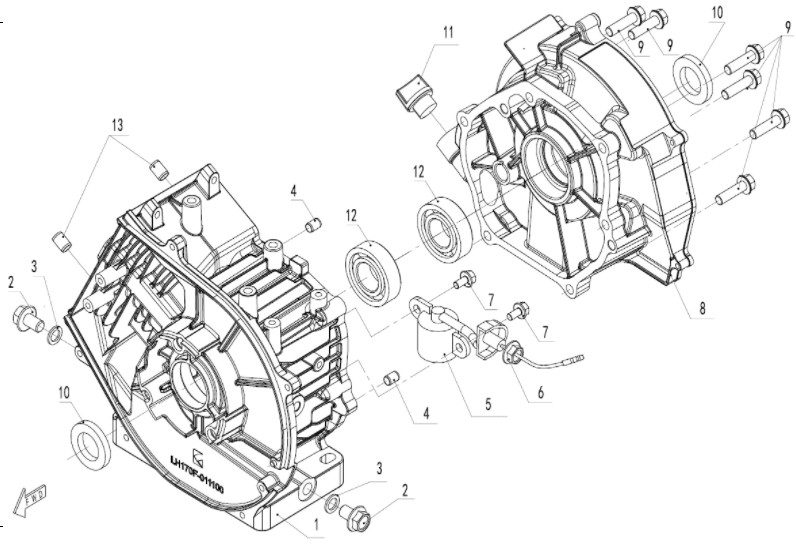

Картер в сборе LH45ie
|
Наименование
|
Артикул
|
|
|---|---|---|
| 1. | CRANKCASE | LH170F-011100 |
| 2. | OIL DRAIN BOLT M10X1.25X15 | LH170F-011001 |
| 3. | GASKET 10X16X1.5, OIL DRAIN BOLT | LH170F-011002 |
| 4. | DOWEL PIN 8X14 | LH142F-012001 |
| 5. | OIL SENSOR | LH170F-011300 |
| 6. | HEX FLANGE BOLT M10X1.25 | GB/T5789-1986 M10X1.25 |
| 7. | HEX FLANGE BOLT M6X14 | GB/T5789-2000 M6X14 |
| 8. | CRANKCASE COVER | LH170F-012001 |
| 9. | HEX FLANGE BOLT M8X30 | GB/T5789-2000 M8X30 |
| 10. | OIL SEAL 25X41.25X6, CRANKSHAFT | LH170F-011200 |
| 11. | OIL DIP ROD | LH170F-012100 |
| 12. | ROLLING BEARING 6205 | GB/T276-1994 6205 |
| 13. | DOWEL PIN 10X14 | LH170F-011003 |
