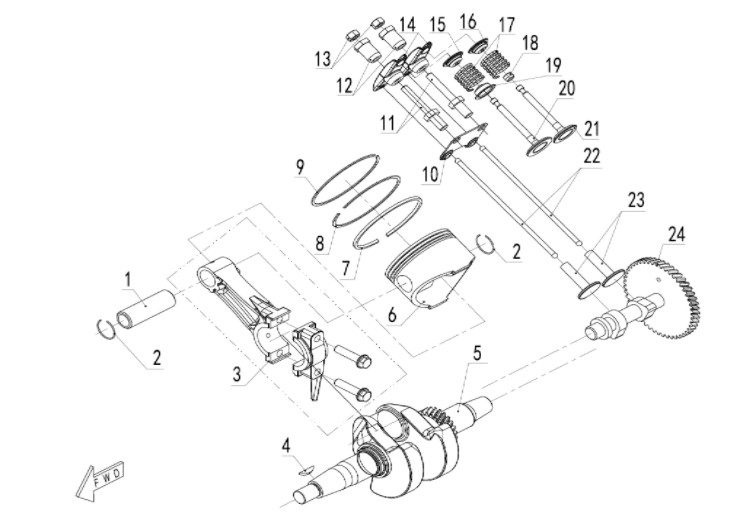

Клапанная система в сборе LH45ie
|
Наименование
|
Артикул
|
|
|---|---|---|
| 1. | PISTON PIN | LH170F-040003 |
| 2. | PISTON PIN CIRCLIP | LH170F-040004 |
| 3. | CONNECTING ROD | LH170F-040300 |
| 5. | CRANKSHAFT | LH170F-040100 |
| 6. | PISTON | LH170F-040002 |
| 7. | OIL RING SET | LH170F-040200 |
| 8. | 1ST PISTON RING | LH170F-040006 |
| 9. | 2ND PISTON RING | LH170F-040005 |
| 10. | ENGINE VENT PIPE | LH170F-013300 |
| 11. | BOLT SHAFT, VALVE ROCKER ARM | LH170F-013004 |
| 12. | DOWEL NUT, ROAKER ARM | LH170F-020008 |
| 13. | ADJUST NUT, VALVE | LH170F-020009 |
| 14. | VALVE ROCKER ARM | LH170F-020007 |
| 15. | SPRING RETAINER, INLET VALVE | LH170F-020011 |
| 16. | SPRING RETAINER, EXHAUSE VALVE | LH170F-020012 |
| 17. | VALVE SRING | LH170F-020005 |
| 18. | LIFTER CAP | LH170F-020010 |
| 19. | LOWER SEAT, VALVE SPRING (VALVE OIL SEAL) | LH170F-020006 |
| 20. | INLET VALVE | LH170F-020003 |
| 21. | EXHAUST VALVE | LH170F-020004 |
| 22. | VALVE LIFTER | LH170F-020002 |
| 23. | VALVE TAPPET | LH170F-020001 |
| 24. | CAMSHAFT | LH170F-021000 |
