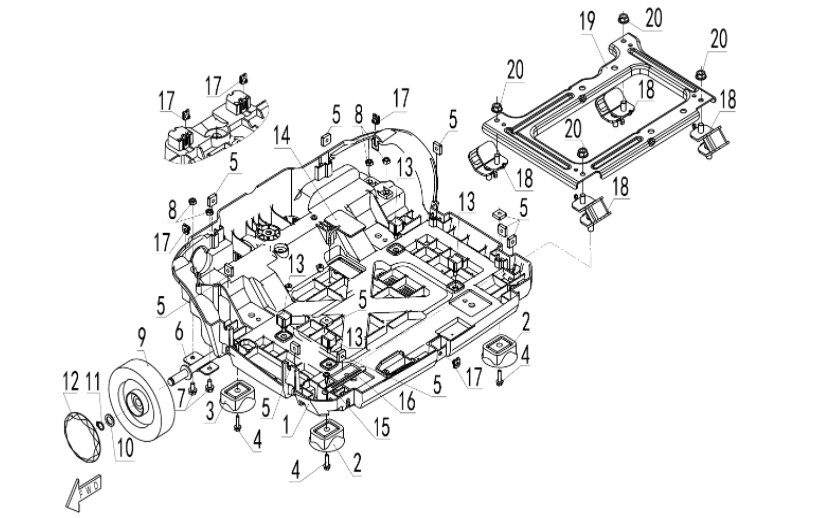

Основание LH45ie
|
Наименование
|
Артикул
|
|
|---|---|---|
| 1. | BOTTOM PLATE | LH45i-391100 |
| 2. | GENERATOR SUPPORT SEAT A | LH45i-391200A |
| 3. | GENERATOR SUPPORT SEAT B | LH45i-391200B |
| 4. | HEX FLANGE BOLT M6X18 | GB/T5789-2000 M6X18 |
| 5. | SQUARE NUT M6 | LH45i-391001 |
| 6. | WHEEL BRACKET | LH45i-392100 |
| 7. | HEX FLANGE BOLT M6X12 | GB/T5789-2000 M6X12 |
| 8. | HEX NUT M6 | GB/T 6170-2000 |
| 9. | WHEEL | LH45i-392001 |
| 10. | GASKET 12 (THICKNESS 1.5) | GB97.1-1985 |
| 11. | SHAFT CIRCLIP 12 | GB894.1-86-A 12 |
| 12. | WHEEL COVER | LH45i-392002 |
| 13. | AUX SUPPORT PAD | LH45i-391005 |
| 14. | RUBBER GASKET, OIL DRAIN PORT | LH45i-391003 |
| 15. | SCREW ST5X15 | GB9074.19-88(F) ST5X15 |
| 16. | LEFT SEALING, INVERTER MODULE | LH45i-390001 |
| 17. | CLIP NUT M5 | LH1000i-381004 |
| 18. | ENGINE SUPPORT SEAT | LH45i-391300 |
| 19. | ENGINE MOUNTING BRACKET | LH45i-393001 |
| 20. | HEX FLANGE NUT M8 | GB/T6177.1-2000 M8 |
