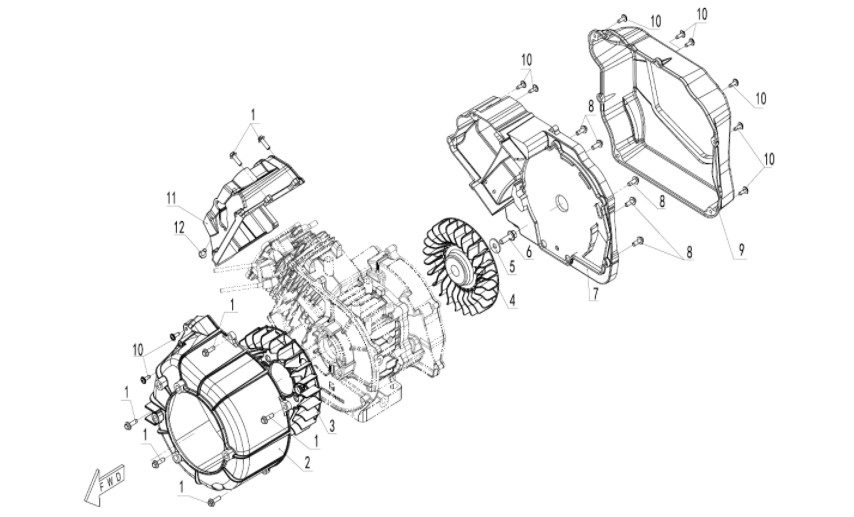

Система охлаждения LH45ie
|
Наименование
|
Артикул
|
|
|---|---|---|
| 1. | HEX FLANGE BOLT M6X20 | GB/T5789-1986 M6X20 |
| 2. | FRONT AIR INLET COVER | LH45i-350100 |
| 3. | FRONT FAN | LH45i-350001 |
| 4. | REAR FAN | LH45i-350002 |
| 5. | A LEVEL GASKET 8 | GB 96.1-2002 8 |
| 6. | HEX FLANGE BOLT M8X1X25 | GB/T5789-1986 M8X1X25 |
| 7. | FRONT COVER,MUFFLER | LH45i-350300 |
| 8. | HEX FLANGE BOLT M5X16 | GB/T5789-1986 M5X16 |
| 9. | REAR COVER, MUFFLER | LH45i-3500400 |
| 10. | SCREW ST5X15 | GB9074.19-88(F) ST5X15 |
| 11. | AIR SCOOPER | LH45i-350200 |
| 12. | HEX FLANGE BOLT M6X12 | GB/T5787-2000 M6X12 |
