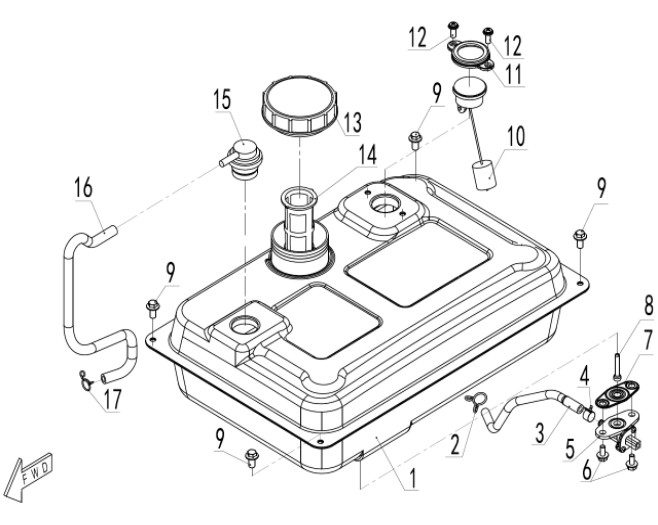

Топливная система LH45ie
|
Наименование
|
Артикул
|
|
|---|---|---|
| 1. | FUEL TANK | LH45i-371100 |
| 2. | CLIP Q67187.5 | QC/T621-1999 Q67187.5 |
| 3. | FUEL OUTLET PIPE, FUEL TANK | LH45i-371002 |
| 4. | CLIP Q67388.5 | QC/T621-1999 Q67388.5 |
| 5. | FUEL SWITCH | LH25i-373000 |
| 6. | BOLT M6X10 | GB/T5789-2000 M6X10 |
| 7. | FUEL SWITCH GASKET | LH25i-371003 |
| 8. | FUEL OUTLET FILTER SCREEN, FUEL TANK | LH25i-371300 |
| 9. | HEX FLANGE BOLT M5X12 | GB/T5789-1999 M5X12 |
| 10. | FUEL SENSOR | LH25i-371200 |
| 11. | LIMIT BUSH, FUEL SENSOR | LH25i-371002 |
| 12. | SCREW M5X10 | GB/T9074.1-1988 M5X10 |
| 13. | FUEL TANK COVER | LH45i-372000 |
| 14. | FUEL FILLING FILTER SCREEN | LH45i-371300 |
| 15. | ONE-WAY VALVE | LH45i-371500 |
| 16. | VENT PIPE, ONE-WAY VALVE | LH45i-371003 |
| 17. | CLIP Q67188.5 | QC/T621-1999 Q67188.5 |
