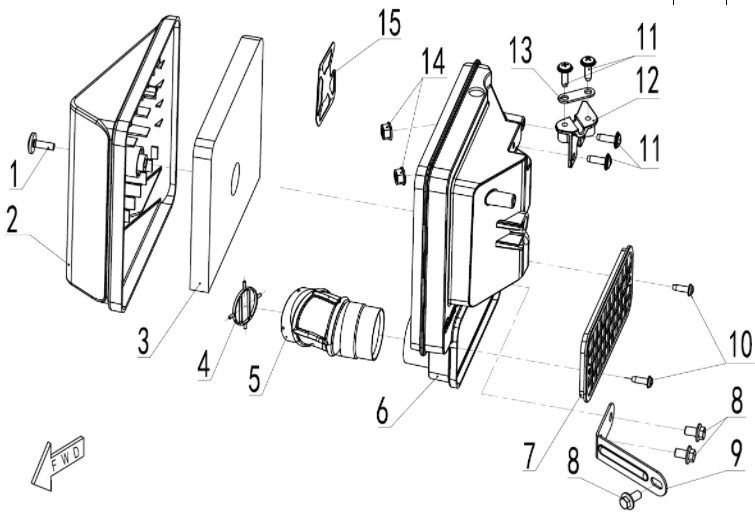

Воздушный фильтр в сборе LH45ie
|
Наименование
|
Артикул
|
|
|---|---|---|
| 1. | SCREW M6X16 | GB/T818-2000 M6X16 |
| 2. | AIR FILTER COVER | LH170F-100003 |
| 3. | AIR FILTER ELEMENT | LH170F-100002 |
| 5. | AIR INLET PIPE, AIR FILTER | LH170F-100008 |
| 6. | AIR FILTER BODY | LH170F-101000 |
| 7. | REAR COVER, AIR FILTER | LH170F-100004 |
| 8. | HEX FLANGE BOLT M6X12 | GB/T5789-1986 M6X12 |
| 9. | SETTING PLATE, AIR FILTER | LH170F-100005 |
| 10. | SCREW ST4.2X12 | GB9074.18-88(F) ST4.2X12 |
| 11. | SCREW ST5X15 | GB9074.19-88(F) ST5X15 |
| 14. | HEX FLANGE NUT M6 | GB/T6177.1-2000 M6 |
| 15. | ELEMENT BAFFLE, AIR FILTER | LH170F-100006 |
